تفاصيل المنتج:

مكان المنشأ: قوانغدونغ، الصين
اسم العلامة التجارية: Vanwin Tracking
إصدار الشهادات: CE/FCC/RoHS
رقم الموديل: فولكس فاجن-224

شروط الدفع والشحن:

الحد الأدنى لكمية: 5 قطعة
الأسعار: negotiated
تفاصيل التغليف: حزمة صندوق كرتوني محايد بشكل افتراضي. تتوفر الحزمة المخصصة إذا وصل الطلب إلى 300 قطعة. تخصيص طباعة ا
وقت التسليم: 2-3 أيام للعينات ، 15-30 يوما للطلبات الكبيرة
شروط الدفع: T/T أو Western Union أو PayPal
القدرة على العرض: 5،0000 PCS شهريًا
افضل سعر اتصل

معلومات تفصيلية
اسم المنتج: كاميرا سيارة للرؤية الليلية عالية الوضوح ميزات المنتج: زاوية كبيرة، 7 أضواء للرؤية الليلية، مقاومة للماء والحرارة
تجهيز السيارة: عالمي مزود الطاقة: 12-36V
دقة الكاميرا: 1080P مستشعر الصورة: AHD
الحد الأدنى من الإضاءة: 0.05 لوكس@(F1.2، تشغيل AGC) بكسل فعال: 1920 (H)*1080 (V)

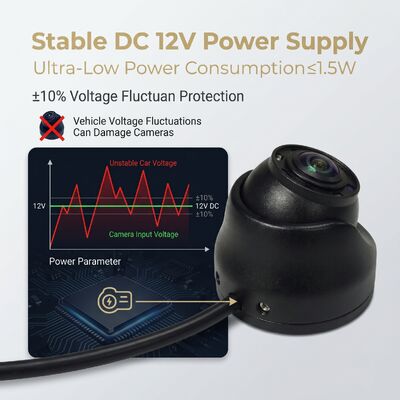

درجة حرارة التشغيل: -20 درجة مئوية ~+70 درجة مئوية مزود الطاقة: تيار مستمر 12 فولت ± 10%

منتوج وصف

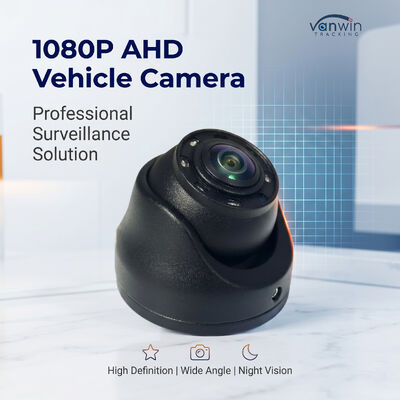

2MP AHD Vehicle Rear View Camera | 1080P HD Waterproof Car Surveillance Camera Equipped with Night Vision Infrared Light



Solution: Built-in 1/2.9" high-sensitivity CMOS sensor, effective pixel 1920*1080, 2.0 megapixel horizontal resolution, standard AHD 1080P video output. Supports PAL/NTSC dual TV system, compatible with most vehicle AHD DVR monitors. With 2D+3D digital noise reduction technology, grainy noise is greatly suppressed, road lines, vehicle logos and obstacles remain sharp even under weak light. S/N ratio up to ≥56dB, restore real vivid scene without color distortion.

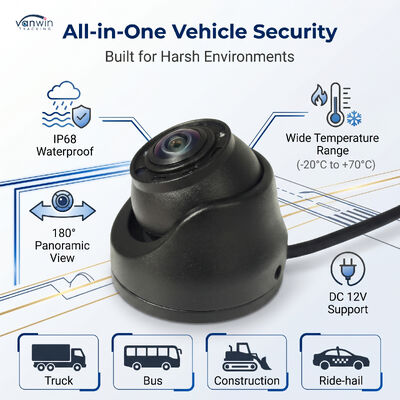

Solution: Three lens options for flexible matching: 3.0mm / 1.98mm / 1.49mm, corresponding viewing angles: 3.0mm: Horizontal 120° / Vertical 60° 1.98mm: Horizontal 150° / Vertical 85° 1.49mm Fisheye: Horizontal 180° / Vertical 110° 180° super fisheye lens covers full rear/side area, completely remove reversing blind spots; auto backlight compensation + auto white balance automatically adjust brightness when facing strong sunlight, tunnel, backlight environment, avoid overexposure or dark shadow dead zones.

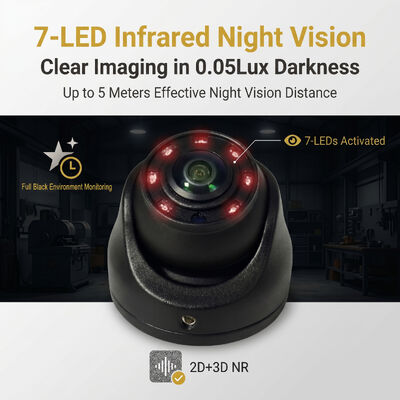

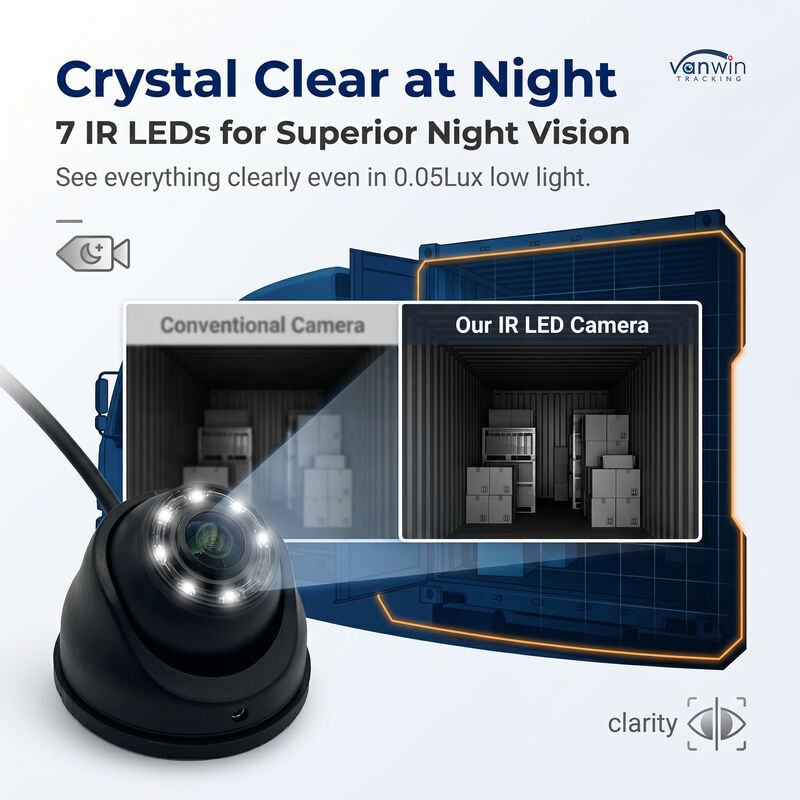

Solution: Minimum illumination up to 0.05Lux (F1.2, AGC ON), 7pcs high-bright infrared LED lights, effective infrared monitoring distance ≥5 meters. Even in dark underground parking lots, rural roads without street lamps, the camera automatically activates infrared fill light to present clear black-white monitoring image, no light pollution interference. Electronic shutter auto-switch from 1/50(1/60) to 1/50000Sec, capture fast-moving road conditions without trailing blur.

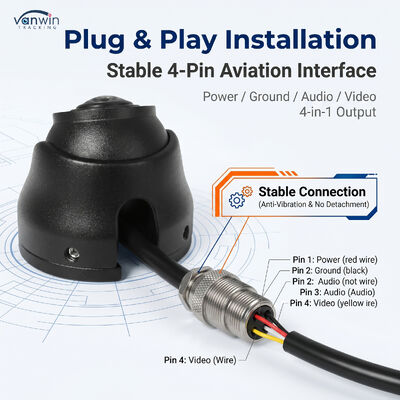

Solution: Standard 4P aviation female connector RS765-4, pin definition standardized: 1 pin: DC12V positive | 2 pin: 12V ground negative | 3 pin: Audio input | 4 pin: AHD video output Aviation plug features anti-vibration, anti-loose, anti-electromagnetic interference performance, adapt to bumpy driving of trucks and construction vehicles. Built-in audio pickup function, synchronously record surrounding sound while capturing video, convenient for accident evidence collection.



Key attributes:

Type
Reverse Camera, Wireless Rear Camera, side view camera
Voltage
12-36V
Position
Rear
Function
NIGHT VIEW, Waterproof, Night vision camera
Camera Resolution
1080P
Image Sensor
AHD
Car Fitment
Universal
Power Supply
12-36V
Warranty
1 Year
Place of Origin
Guangdong, China
Brand Name
VANWIN
Model Number
VW-224
Product Name
High definition night vision car camera
Product Features
Large angle, 7 night vision lights, waterproof and heat-resistant
Minimum illumination
0.05Lux@(F1.2,AGC ON)
Effective pixel
1920(H)*1080(V)
Image sensor
1/2.9" CMOS
Horizontal resolution
2.0Megapixel
S/N ratio
≥56dB
Sync system
Internal
Operating temp
-20°C~+70°C
Power supply
DC12V±10%



2MP AHD Vehicle Rear View Camera | 1080P HD Waterproof Car Surveillance Camera Equipped With Night Vision Infrared Light 0

2MP AHD Vehicle Rear View Camera | 1080P HD Waterproof Car Surveillance Camera Equipped With Night Vision Infrared Light 1

2MP AHD Vehicle Rear View Camera | 1080P HD Waterproof Car Surveillance Camera Equipped With Night Vision Infrared Light 2

2MP AHD Vehicle Rear View Camera | 1080P HD Waterproof Car Surveillance Camera Equipped With Night Vision Infrared Light 3

2MP AHD Vehicle Rear View Camera | 1080P HD Waterproof Car Surveillance Camera Equipped With Night Vision Infrared Light 4

FAQs
Who are we?
We are Shenzhen Vanwin Tracking Co.,Ltd specializing in R&D, production, and sales of vehicle video monitoring systems, 3G/4G/5G/GPS monitoring kits, and related products.
How can we guarantee quality?
We use high-quality materials and advanced AI technology, Complete testing system and equipment,with over 15 years of experience and a strong focus on quality and on-time delivery.
Why should you buy from us not from other suppliers?
We have over 15 years of experience, strong R&D capabilities, and a commitment to providing unique and high-quality products with excellent service.
What services can we provide?
We provide products such as SD HDD MDVR, 3G/4G/5G remote control monitoring DVR, vehicle multimedia ads machine, car camera, and software, used in public transport, logistics, law enforcement, and more.
Do you support customization?
Of course! We support small batch customization of brands and color box customization, as well as SKD and CKD technical support.
